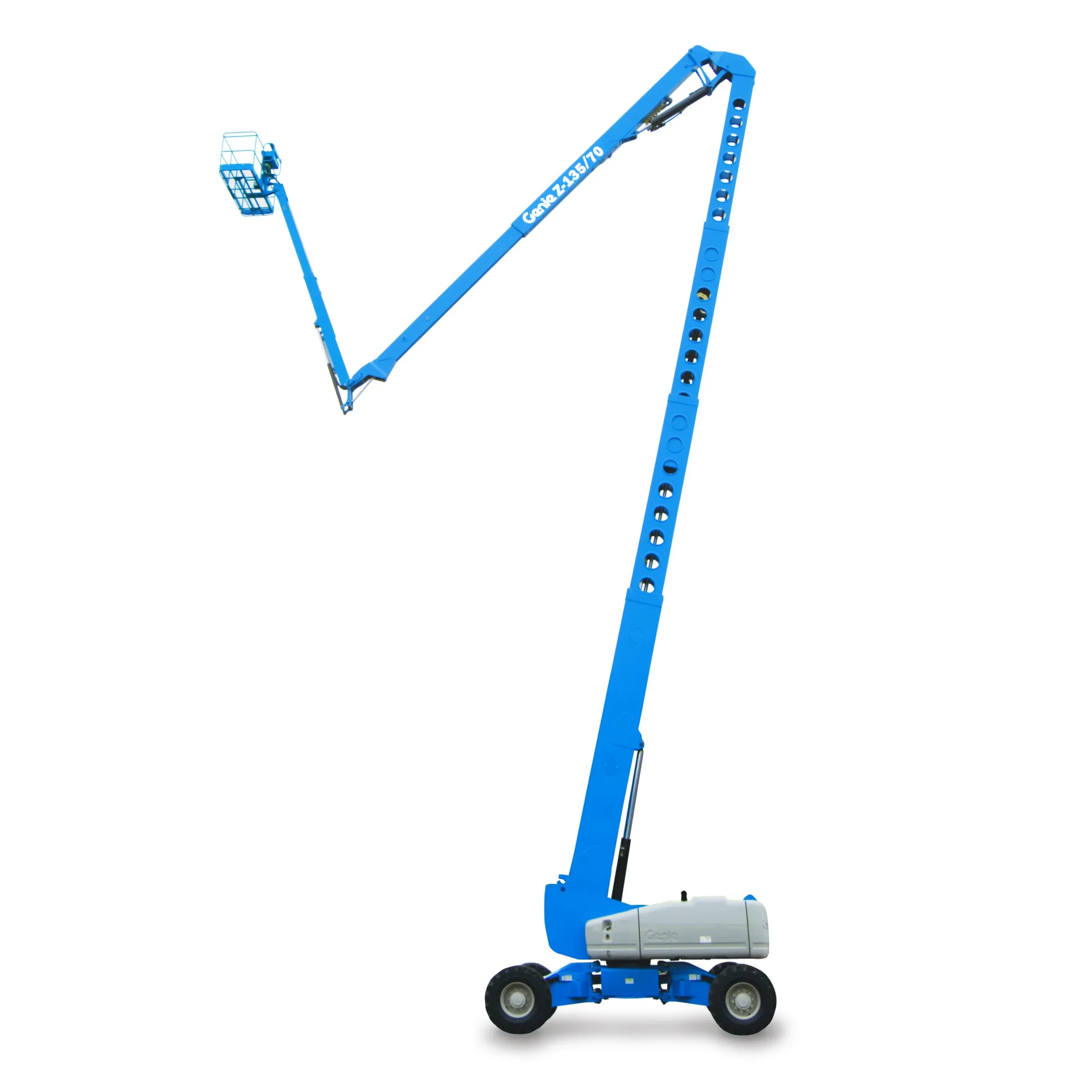

Genie ZX-135/70

*ACTUAL MACHINE – MODEL MAY VARY*

43.15M ARTICULATING BOOM LIFT

 TECHNICAL DATA

• Working height maximum* : 141 ft / 43.15 m

• Platform height maximum : 135 ft / 41.15 m

• Horizontal reach max - riser extended : 59 ft 2 in / 18.03 m

• Horizontal reach max - riser retracted : 69 ft 9 in / 21.26 m

• Up and over clearance maximum :

- riser extended : 75 ft 6 in / 23.01 m

- riser retracted : 32 ft 6 in / 9.91 m

• Below ground reach : 19 ft 3 in / 5.87 m

• Platform length - 8 ft / 6 ft model : 3 ft / 2 ft 6 in / 0.91 m / 0.76 m

• Platform width - 8 ft / 6 ft model : 8 ft / 6 ft / 2.44 m / 1.83 m

• Height - stowed : 10 ft 1.5 in / 3.09 m

• Length - stowed : 42 ft 5 in / 12.93 m

• Width - axles retracted : 8 ft 2 in / 2.49 m

• Width - axles extended : 12 ft 11 in / 3.94 m

• Wheelbase - axles retracted : 13 ft 6 in / 4.11 m

• Wheelbase - axles extended : 13 ft 6 in / 4.11 m

• Ground clearance - center : 1 ft 3 in / 0.38 m

PRODUCTIVITY

• Lift capacity : 600 lb / 272 kg

• Platform rotation : 160°

• Vertical jib rotation : 110°

• Turntable rotation : 360° continuous

• Turntable tailswing - axles extended riser up : 2 ft 8 in / 0.81 m

• Turntable tailswing - riser down : 14 ft 1 in / 4.29 m

• Drive speed - stowed : 3.0 mph / 4.8 km/h

• Drive speed - raised : 0.68 mph / 1.1 km/h

• Lift speed to full height : 96 sec

• Gradeability - stowed** : 45%

• Turning radius - axle retracted :

- inside : 26 ft 4 in / 8.03 m

- outside : 32 ft 8 in / 9.96 m

• Turning radius - axle extended :

- inside : 9 ft 6 in / 2.90 m

- outside : 20 ft 3 in / 6.17 m

• Controls : 12 V DC proportional

• Tires : 445D50/710 18 ply foam-filled

POWER

• Power source :

- 74 hp (55 kW) Deutz turbo diesel, Tier 4f, 2.9 L

- 74 hp (55 kW) Deutz turbo diesel, Tier 4i, TD2011 L04i

- 74 hp (55 kW) Perkins turbo diesel, Tier 4f, 854F-E34T

- 74 hp / 83 hp (55 kW / 62 kW) Perkins turbo diesel, Tier 3, 1104D-44T

• Auxiliary power unit : 12 V DC

• Hydraulic tank capacity : 65 gal / 246.1 L

• Fuel tank capacity : 40 gal / 151.4 L

WEIGHT***

• 46,500 lb / 21,092 kg

• Standards Compliance : ANSI A92.20, CSA B354.7, EN 280, AS 1418.10

ARTICULATING BOOM LIFT RENTALS ARE ESPECIALLY USEFUL FOR APPLICATIONS NEEDING HIGH REACH CAPABILITIES

• Rotate 360 degrees in either direction for better positioning

• Raise or lower boom from vertical to below horizontal

• Extend platform while remaining straight and stable

• Operator on platform can steer and maneuver in any direction

• Platform heights available up to 185 ft

• Available in Electric and diesel fuel options

• 2-wheel, 4-wheel and rough terrain options available

HOW TO CHOOSE THE RIGHT ARTICULATING BOOM LIFT HEIGHT

• Determine the Weight Capacity - Make sure the telescopic boom lift you choose can support enough weight for your task

• Calculate the Articulating Boom Lift Height and Range

• Assess the Size of the Platform

• Review the Safety Components
